Chemical Drums 200L 220L 250L Drums HDPE Products Extrusion Blow Molding Machine

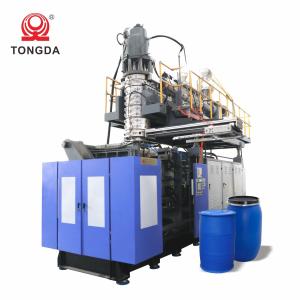

TDB-250F Extrusion Blow Molding Machine
This machine is suitable for 160L-250L products, such as drums, pallets, and so on. It is bottom blow. The die-head is accumulator. It is equipped with servo motor.
The main parts of this machine are designed and manufactured by ourselves. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical parameters
| MODEL | Units | TDB-250F | Remarks: If you have other special requirements,we can provide customized services for you. |
| Max. Product volume | L | 250 |
| Output of HDPE | kg/h | 380 |
| Clamping force | kn | 770 |
| Screw diametre | mm | 120 |
| Screw heating power | kw | 53 |
| Blow pressure | mpa | 0.6 |
| Size of machine | m | 7.8*2.9*5.4 |
Product Description
Product details
15 inches color control screen, with more convenient operation
Two tie rods, single cylinder bidirectional synchronous mold opening and closing center mold clamping mechanism, which makes product quality stable and this design easy to take out the product.
Low energy consumption:If the screw speed of TDB-50F is around 70%, then the average power consumption is 35KW/h
Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.
Company information
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.
Service network
Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
Q: how big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.
Product Tags:
|
|
200L 220L 250L HDPE Plastic Blow Molding Machine Chemical Drum Single Station Images
|
