Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine

Name: Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine
Brand: TONGDA
Price: 54 USD

China Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine wholesale

Place of Origin : JIANGSU, CHINA

Brand Name : TONGDA

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Supply Ability : 800sets/year

Price : $54,999.00/Sets >=1 Sets

Certification : CE, ISO9001

MOQ : 1SET

Delivery Time : 28 working days

Payment Terms : T/T, L/C, D/P, West Union

Model Number : HTSII-5L

Hollow part volume : 1-5L

Clamping Force (kN) : 110KN

PLC Brand : MITSUBISHI

Screw L/D Ratio : 25

Screw diameter (mm) : 80 mm

Output : 110 kg/h

Screw Heating Power(kW) : 19 kW

Extruder Motor Power(kW) : 30 kW

Contact Now

TONGDA HTSll-5L Automatic Plastic 1 Gallon Nutrition Jar Making Machine Blow Molding Machine For Oil Jerry Can

Product Description

This is our normal series machine.It is double station.This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters

MODEL	Units	HTSll-5L	Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume	L	5
Output of HDPE	kg/h	110
Clamping force	kn	110
Screw diametre	mm	80
Screw heating power	kw	19
Blow pressure	mpa	0.6
Size of machine	m	4.12.62.7

Product Details

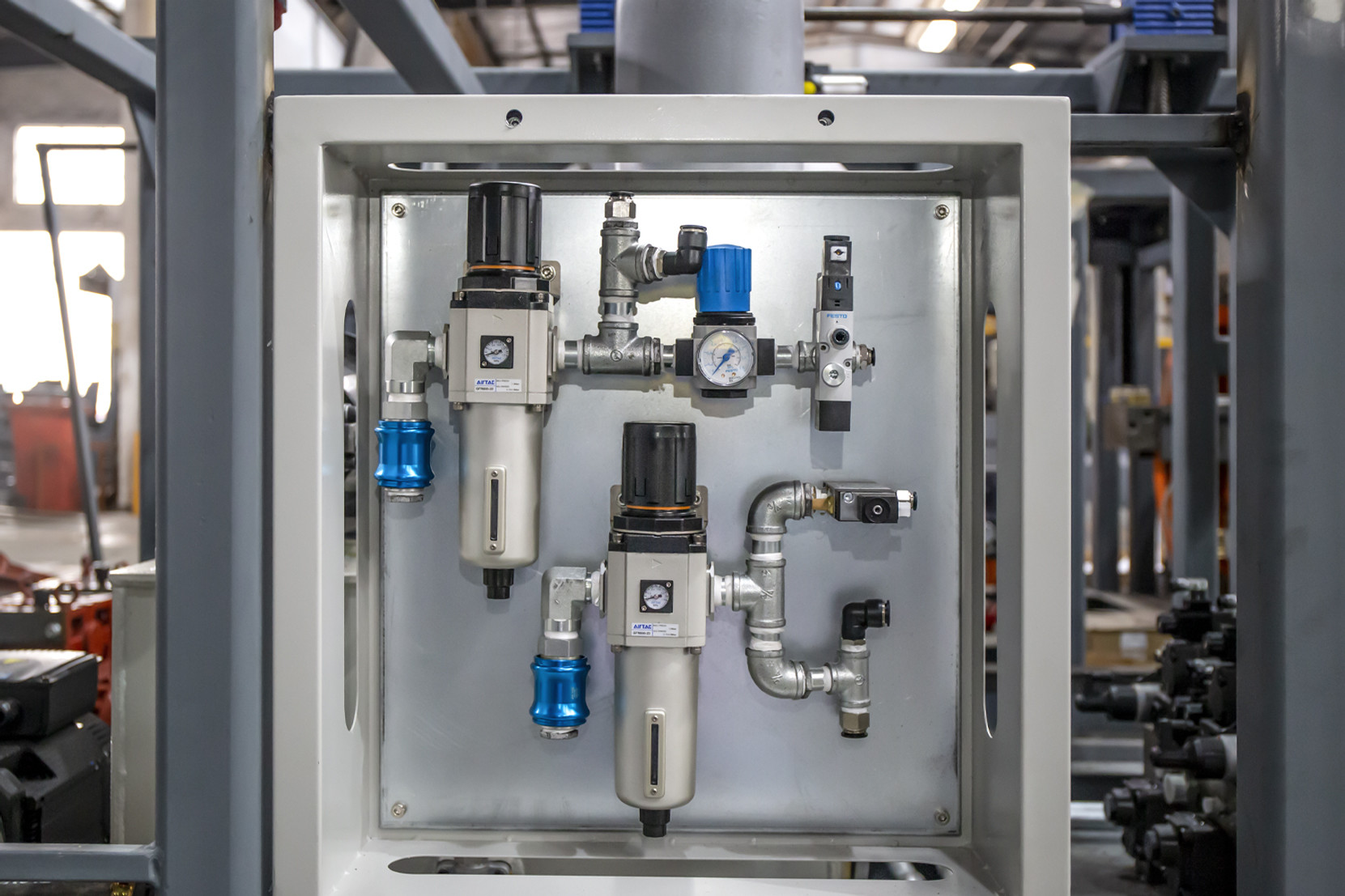

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine

Company Information

Suzhou Tongda Machinery, located in Zhangjiagang City, 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines.

We have established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine

After-sales Service

Before epidemic, we send engineers to customers factory to do installation, debugging.

And from the COVID-19, sending out engineers is not convenient, so we started to do after-sales service by online training.

Nutrition Plastic Jar Making Machine 1 Gallon Automatic Moulding Machine

Why Choose Us

Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

Advantages of TONGDA tech teams

Customize equipment models according to customer product characteristics.
Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team

Lifetime free service for the machine.
Set up domestic service team and international service team.
Technicians also master the debugging and maintenance of auxiliary equipment.
