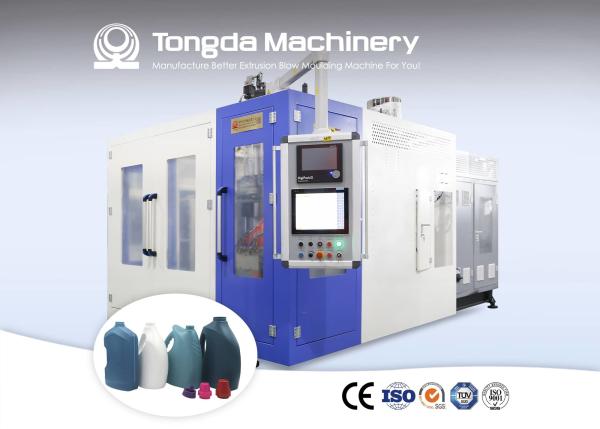

Single Station PE Blow Molding Machine

Name: Single Station PE Blow Molding Machine
Brand: TONGDA
Price: 129 USD

China Single Station PE Blow Molding Machine wholesale

Brand Name : TONGDA

Model Number : HS-12L

Certification : CE, ISO9001

Place of Origin : JIANGSU, CHINA

MOQ : 1SET

Price : $129,999.00 - $149,999.00/Sets

Payment Terms : T/T, L/C, D/P, West Union

Supply Ability : 800sets/year

Delivery Time : 28 working days

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Station : Single

Suitable bottle : 1-12L

Screw diameter (mm) : 80 mm

Screw L/D Ratio : 25

Clamping Force : 158KN

Output of HDPE : 110 kg/h

Max. Size of Mold(W*H) : 590*500mm

Mold moving stroke : 600mm

Contact Now

TONGDA HS12L Single Station PE Jerry Can Blow Moulding Machine View Strip Line Extrusion Blow Molding Machine

Product Description

HS series machine is our high level series extrusion blow molding machines. Equipped with hydraulic servo system. Save energy and with more stable running. The clamping unit adopts elbow style so that with higher and uniform clamping force. Using proportional valve control the mold open & close, and linear guide rail, the movement for the mold open & close will be more stable and fast. This machine is suitable for producing HDPE/PP jerry cans size below 12liters.

It can be also equipped with multi head die-heads to make small bottles with higher output.

The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Technical Parameters

MODEL	Units	HS-12L	Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume	L	12
Output of HDPE	kg/h	120
Clamping force	kn	158
Screw diametre	mm	80
Screw heating power	kw	19
Blow pressure	mpa	0.7
Size of machine	m	5.21x2.62x3.2

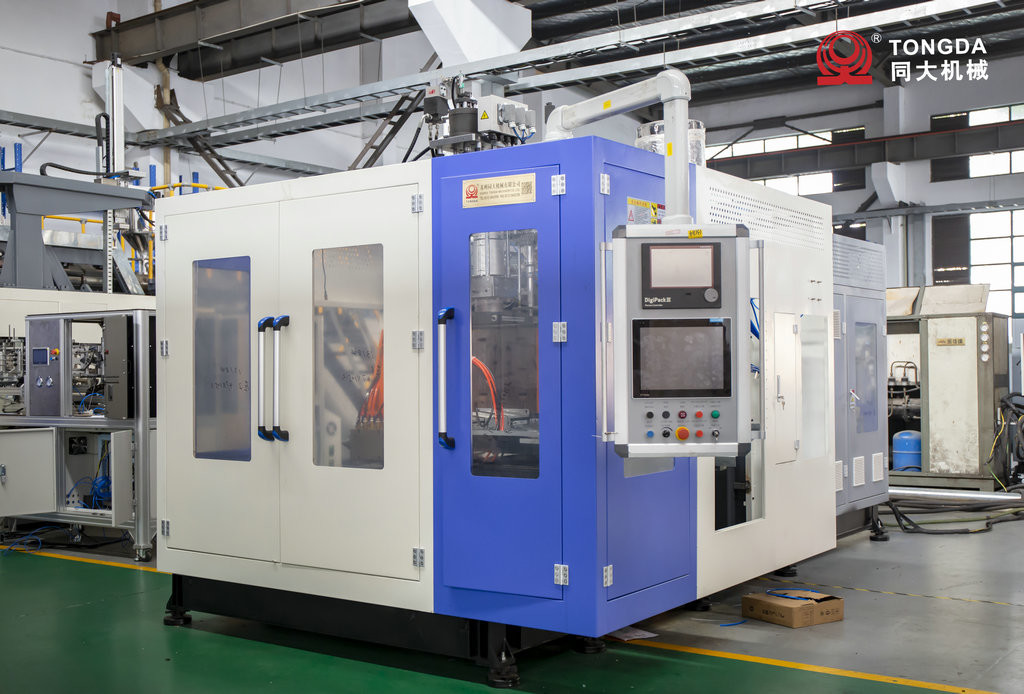

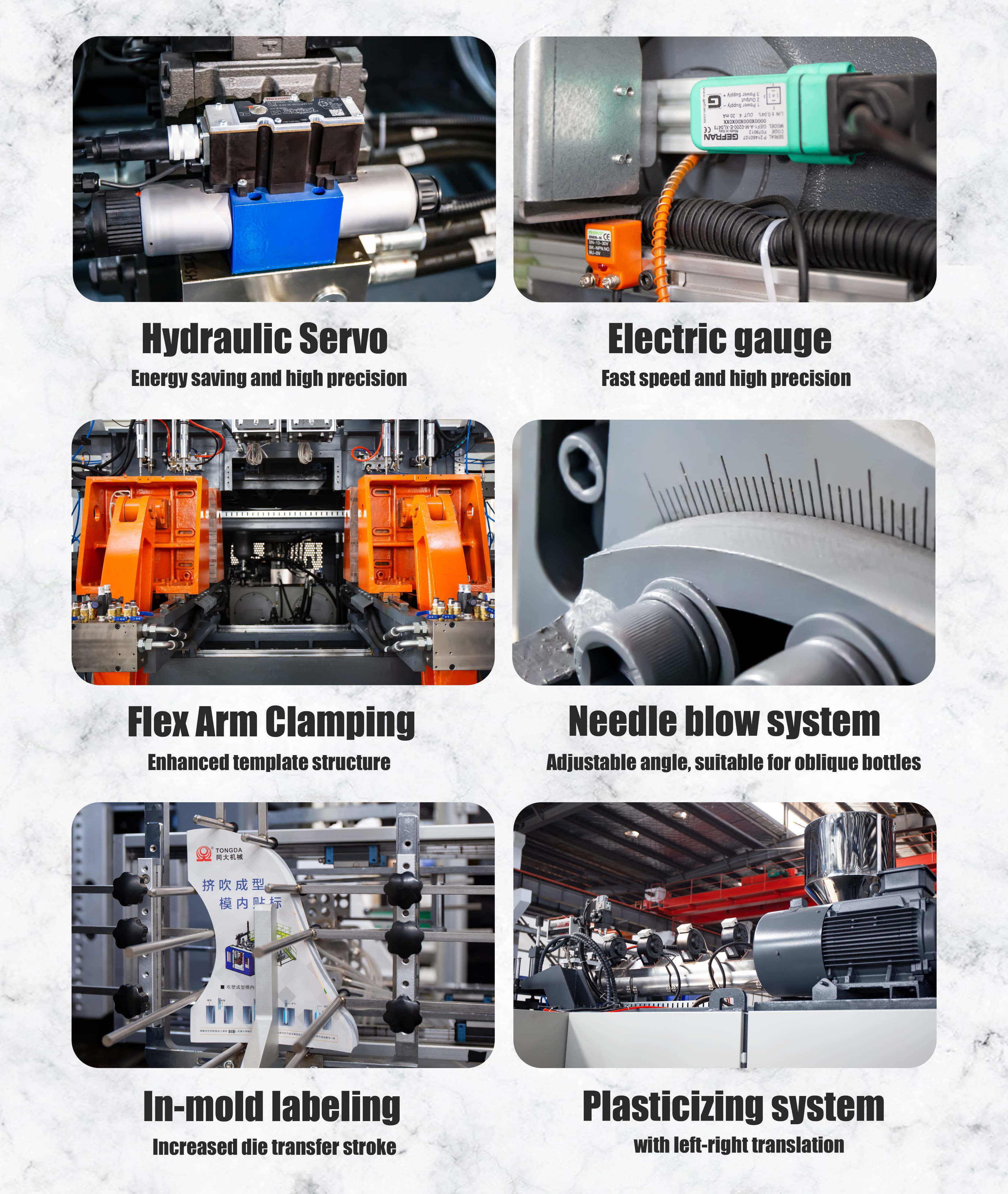

Product Details

Our Advantages

After-sales service

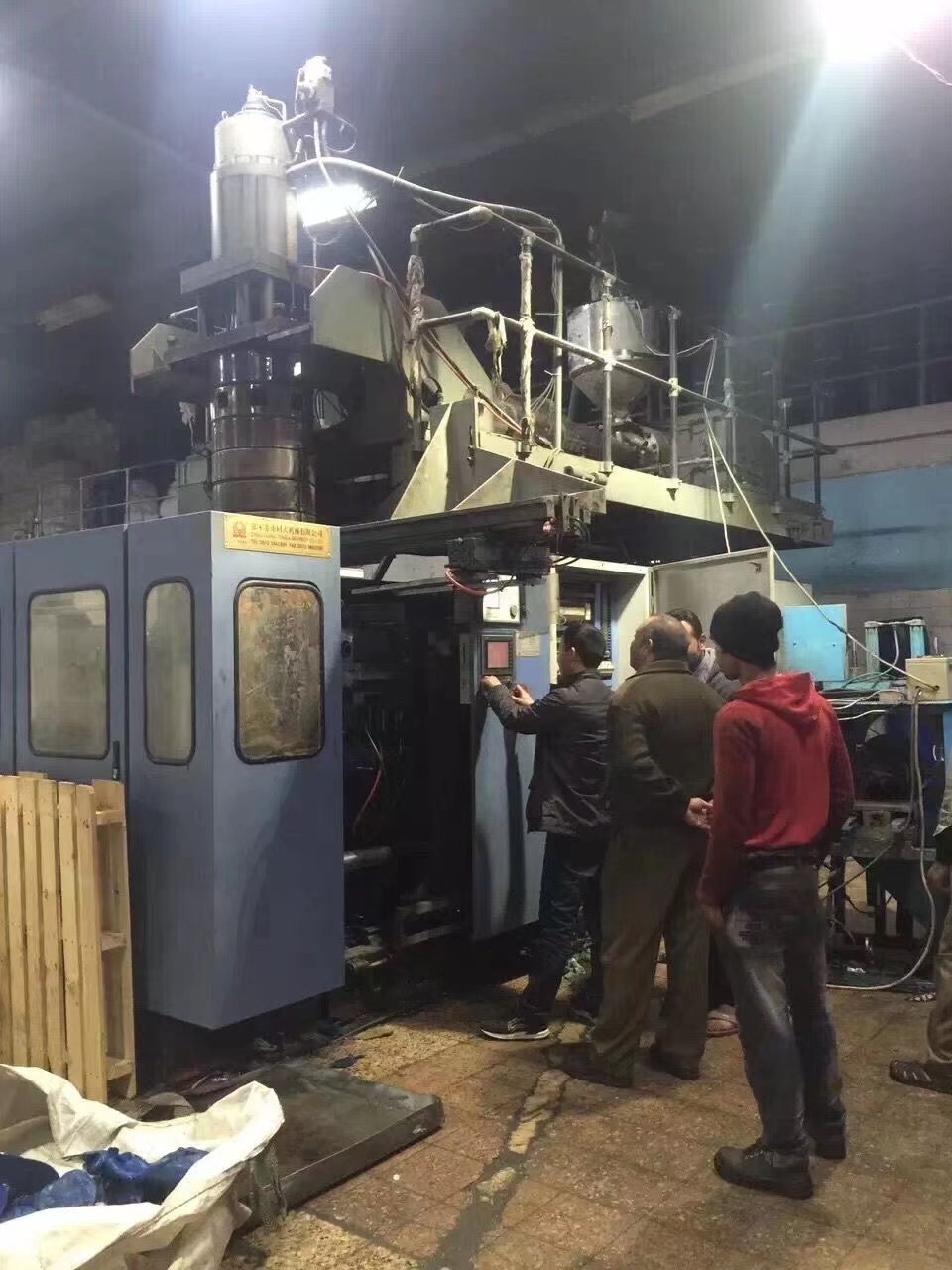

Arrange engineer to customer's factory

Company Information

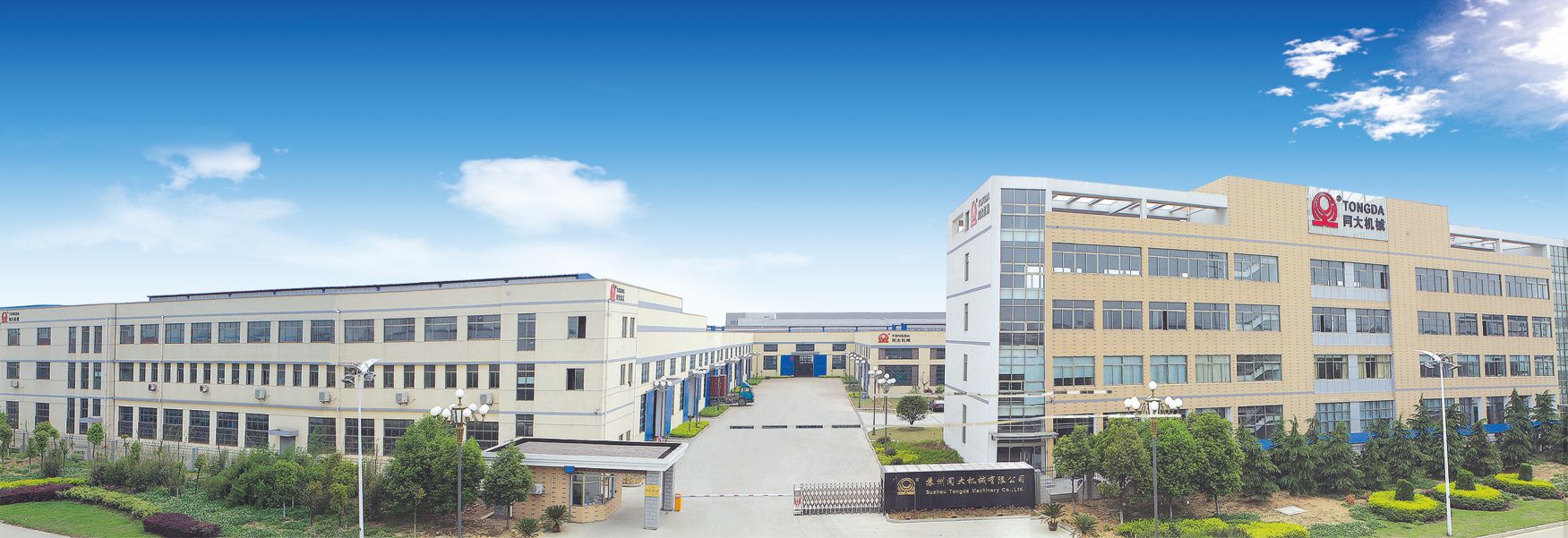

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.

Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.

Why Choose Us

Service Marketing Network

1.Over four thousand Tongda machines have been serving customers all over the world.

2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.

3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa, Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: How big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
